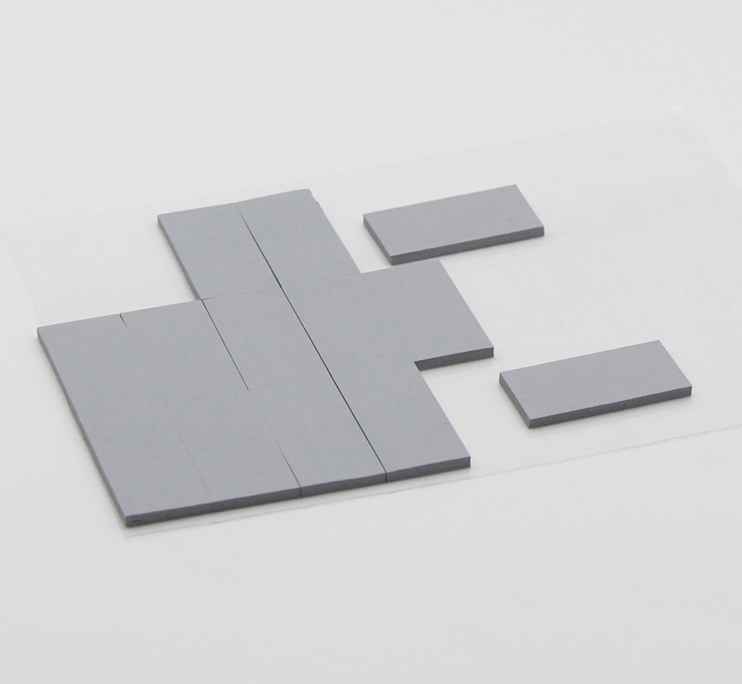

RS6000-Pad20 Series Thermal Pads

Name: RS6000-Pad20 Series Thermal Pads
Brand: Thermal interface material (TIM) | Thermal pad | Thermal grease | The
Availability: InStock
Rating: 5 (1 reviews)

RS6000-Pad20 Gap-Filler Pads allow you to not only retain the thermal performance, but also give you a leeway to customize your pad shapes. You may include additional punch holes at 2.0W/m.K, and you may tailor the pads to the satisfactory level as long as the design drawings are provided.

——————————————————————————————————————————————————

Features: soft and highly compliant, self-adhesive, easy-to-apply.

Applications: electro-optical and radar sensors, navigation systems, inertial sensors, GNSS and robotics, speed sensors, displays, embedded computers, power control & conditioning systems, RF & microwave products, networking and telecommunications, notebooks, tablets, power conversion, SSD, NVMe, VAM, VRAM, heat sink, EMS, ITM, MCU.

GET A QUOTE

SPECIFICATION

Attribute	Value	Test Method
Composition	Ceramic Filler + Silicone	-
Color	Grey	Visual
Thickness（mm）	0.7-12.0	ASTM D374
Density (g/cc)	2.6	ASTM D792
Hardness (shore oo)	50 shore OO（Thickness≤1.0） 40 shore OO（Thickness>1.0）	ASTM D2240
Usage Temperature (C)	-60~+200	-
Electrical
Breakdown Voltage (kV/mm)	>6.0	ASTM D149
Dielectric Constant @1MHz	7.0	ASTM D150
Volume Resistivity (Ω.cm)	10^12	ASTM D257
Flammability	V-0	UL 94
Thermal
Thermal Conductivity (W/m.K)	2.0	ASTM D5470

Legal Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us for more information.

* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.

————————————————————————————————————————————————————————————————

Thermal Pad Manufacturer（TPHI）

Standard Sheet Size

200x400mm or custom die cut parts.

Thickness available in 0.25mm increments.

Storage

Store in a cool, dry, well-ventilated place.

Shelf life

Shelf life of the product is 12 months after date of shipment.
