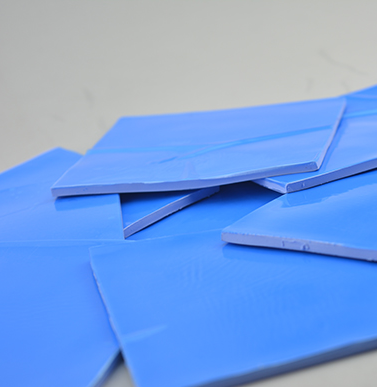

RS6000-Pad40 Series Thermal Pads

Name: RS6000-Pad40 Series Thermal Pads
Brand: Thermal interface material (TIM) | Thermal pad | Thermal grease | The
Availability: InStock
Rating: 5 (1 reviews)

RS6000-Pad40 elevates the overall performance of the thermal materials, achieving the standards up to 4.0W/m.K, while maintaining a hardness of 55 (shore 00). The low hardness to thermal conductivity ratio ensures that RS6000-Pad40 shall provide an extraordinary usage experience to our clients.

————————————————————————————————————————————————

Features:thermal conductivity: 4.0W/m.K, low silicone oil extraction.

Applications: LED lighting systems, power supplies and conversion, semiconductor packaging, IGBTs, automotive, wireless charging, advanced driver assistance systems (ADAS).

GET A QUOTE

SPECIFICATION

Attribute	Value	Test Method
Composition	Ceramic Filler + Silicone	-
Color	Light Blue	Visual
Thickness（mm）	0.5-10.0	ASTM D374
Density (g/cc)	3.2	ASTM D792
Hardness (shore oo)	55 Shore OO(Thickness ≤ 1.0） 45 Shore OO (Thickness＞1.0）	ASTM D2240
Usage Temperature (C)	-60~+200	-
Electrical
Breakdown Voltage (kV/mm)	>6.0	ASTM D149
Dielectric Constant @1MHz	＜7.5	ASTM D150
Volume Resistivity (Ω.cm)	10^12	ASTM D257
Flammability	V-0	UL 94
Thermal
Thermal Conductivity (W/m.K)	4.0	ASTM D5470

Legal Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us for more information.

* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.

————————————————————————————————————————————————————————————————

Thermal Pad Manufacturer（TPHI）

Standard Sheet Size

200x400mm or custom die cut parts.

Thickness available in 0.25mm increments.

Storage

Store in a cool, dry, well-ventilated place.

Shelf life

Shelf life of the product is 12 months after date of shipment.
