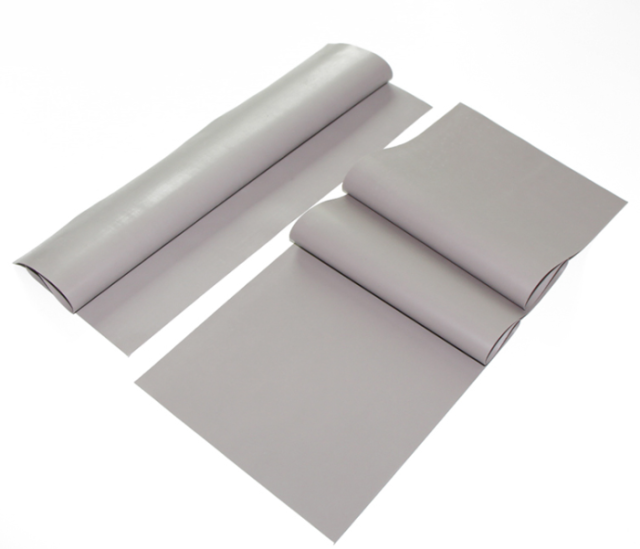

RS6000-Pad50 Series Thermal Pads

Name: RS6000-Pad50 Series Thermal Pads
Brand: Thermal interface material (TIM) | Thermal pad | Thermal grease | The
Availability: InStock
Rating: 5 (1 reviews)

RS6000-Pad50 Thermal Conductive Silicone Pads accommodates high thermal conductivity. It is self-adhesive on both sides. It has low thermal resistance and better electrical insulation characteristics under low compression force during application. Working on it under -40 to 200 degree celsius is the most ideal, and this material meets the flame retardant grade V-0 of the UL 94 standards.

——————————————————————————————————————————————————

Features: elevated performance gap-filler pad, thermal conductivity: 5.0W/m.K.

Applications: networking and telecommunications, IT: BGA, ASIC, VRAM, high speed storage, energy storage systems, power box.

GET A QUOTE

SPECIFICATION

Attribute	Value	Test Method
Composition	Ceramic Filler + Silicone	-
Color	Gray	Visual
Thickness（mm）	0.5-6.0	ASTM D374
Density (g/cc)	3.2	ASTM D792
Hardness (shore oo)	50±10 shore OO	ASTM D2240
Usage Temperature (C)	-60~+200	-
Electrical
Breakdown Voltage (kV/mm)	≥6.0	ASTM D149
Dielectric Constant @1MHz	7.4	ASTM D150
Volume Resistivity (Ω.cm)	10^11	ASTM D257
Flammability	V-0	UL 94
Thermal
Thermal Conductivity (W/m.K)	5.0	ASTM D5470

Legal Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us or e-mail liyanghua@rstim.cn to determine product availability.

* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.

————————————————————————————————————————————————————————————————

Thermal Pad Manufacturer（TPHI）

Standard Sheet Size

200x400mm or custom die cut parts.

Thickness available in 0.25mm increments.

Storage

Store in a cool, dry, well-ventilated place.

Shelf life

Shelf life of the product is 12 months after date of shipment.
