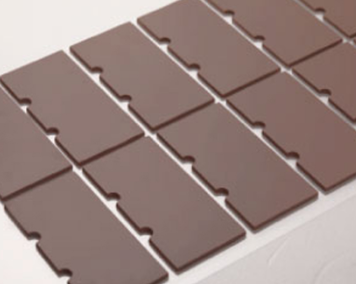

RS6000-Pad60 Series Thermal Pads

Name: RS6000-Pad60 Series Thermal Pads
Brand: Thermal interface material (TIM) | Thermal pad | Thermal grease | The
Availability: InStock
Rating: 5 (1 reviews)

RS6000-Pad60 series thermal pad has high thermal conductivity. It is self-adhesive on both sides. When bonded with electronic components, it exhibits lower thermal resistance and better electrical insulation characteristics under low compression. Working on it under -40 to 150 degree celsius is the most ideal, and it fulfils the flame retardant grade V-0 of the UL 94 standards.

————————————————————————————————

Features: thermal conductivity: 6.0W/m.K, high conformability, electrically insulating, easy to assembly.
Applications: between electronic components such as semiconductor, IC, CPU, MOS and heat sink, LCD-TV, radio devices and equipment, both analogue and digital, and all the accompanying accessories (GPS receivers, switching units, radio bridges, etc.).

GET A QUOTE

SPECIFICATION

Attribute	Value	Test Method
Composition	Ceramic Filler + Silicone	-
Color	Warmred	Visual
Thickness（mm）	0.5-10.0	ASTM D374
Density (g/cc)	3.285	ASTM D792
Hardness (shore oo)	40 (Thickness ≤ 1.0 Shore OO 50)	ASTM D2240
Usage Temperature (C)	-60~+200	-
Electrical
Breakdown Voltage (kV/mm)	>5.0	ASTM D149
Dielectric Constant @1MHz	7.9	ASTM D150
Volume Resistivity (Ω.cm)	10^12	ASTM D257
Flammability	V-0	UL 94
Thermal
Thermal Conductivity (W/m.K)	6.0	ASTM D5470
Thermal Resistance (℃ −in²/W, @20psi, 1mm )	0.138	ASTM D5470

Legal Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us for more information.

* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.

————————————————————————————————————————————————————————————————

Thermal Pad Manufacturer（TPHI）

Standard Sheet Size

200x400mm or custom die cut parts.

Thickness available in 0.25mm increments.

Storage

Store in a cool, dry, well-ventilated place.

Shelf life

Shelf life of the product is 12 months after date of shipment.
