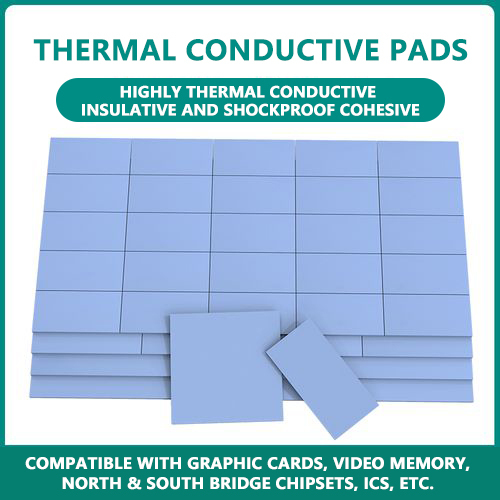

RS6000-Pad10 Series Thermal Pads

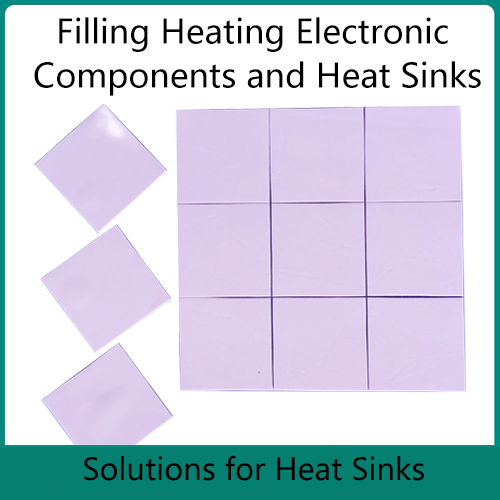

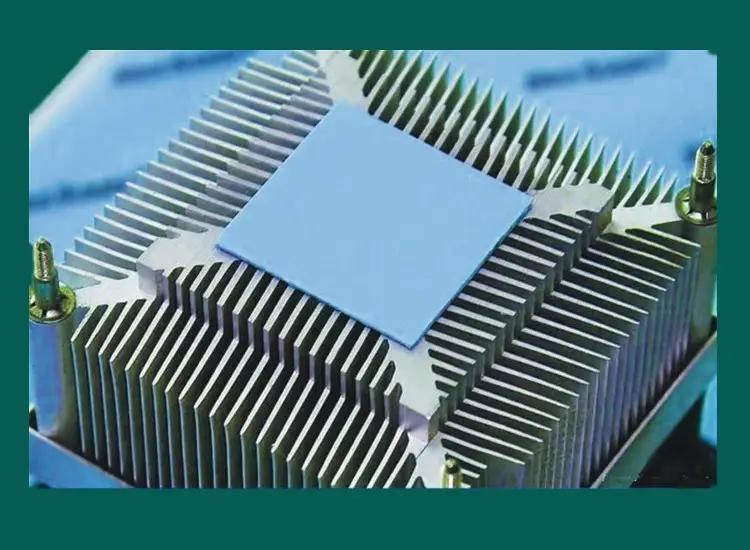

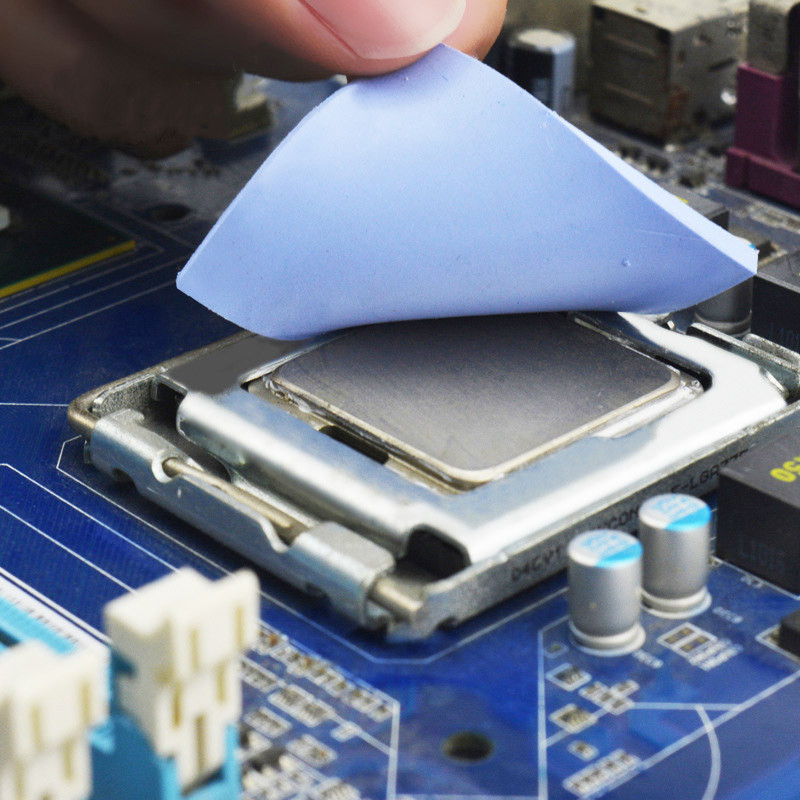

RS6000-Pad10 series of thermal conductive pads are very cost-effective interface materials. Natually soft with their adhesive micro-stickiness, they are quite easy to assemble. They present good thermal conductivity and electrical insulation properties under low compressing force. Embedding on the gap between the heat device and the heat sink or the machine shell can be helpful to extrude air and reach the full adhesion, forming a continuous thermal conduction.

Working on it under -40 to 200 degree celsius is the most ideal, and this material meets the flame retardant grade V-0 of the UL 94  standards.


Features: thermal conductivity 1.0-15W/m.K, ultra soft, excellent compressibility, UL and RoHS compliant.
  • Thermally Conductive Pad 1-8w·m/k
  • Thermally Conductive Pad 1-8w·m/k
  • Thermally Conductive Pad 1-8w·m/k
  • Thermally Conductive Pad 1-8w·m/k
  • Thermally Conductive Pad 1-8w·m/k
  • Thermally Conductive Pad 1-8w·m/k

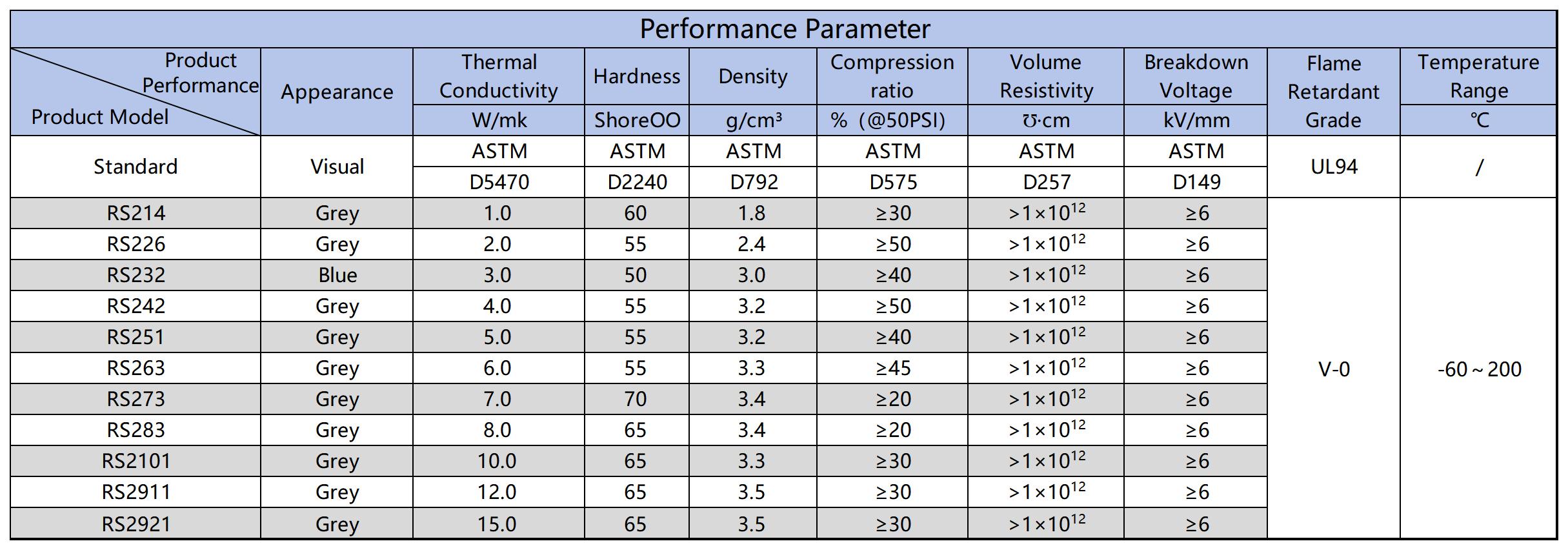

SPECIFICATION



Legal Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us or e-mail zhangwei@rstim.cn to determine product availability.

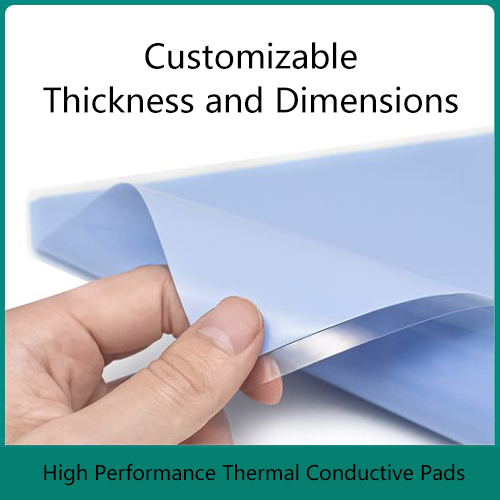

* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.

————————————————————————————————————————————————————————————————


Thermal Pad Manufacturer(TPHI)

Standard Sheet Size

200x400mm or custom die cut parts.

Thickness available in 0.25mm increments.

Storage

Store in a cool, dry, well-ventilated place.

Shelf life

Shelf life of the product is 12 months after date of shipment.
